Fitting Anti-tramp, panhard & AVO'S to a 4 seater #182024
14/02/14 06:41 PM
14/02/14 06:41 PM
Joined: Oct 2012
Posts: 184
Isle of Wight
Georgie Offline OP
L - Learner Plates On
Georgie  Offline OP
L - Learner Plates On

Joined: Oct 2012
Posts: 184
Isle of Wight
NEW - Including photo's Installing Anti-tramp, Panhard rod and AVO shocks to a 4/4 Four seater.

The installation on a four seater is a little more complicated than the two seater so i thought I would post this thread on installing Anti-tramp bars & Panhard rod to a 4 seater. The kits, including AVO shocks were purchased from Tim at New Elms as a winter project, reading through the excellent Mulberry fitting instructions everything seemed straightforward. The four seater is a little more complicated than the two seater so the following is I hope a handy guide.

Removing the back seats is essential, not only for replacing the Shocks, but also for installing the battery box support as discribed below.

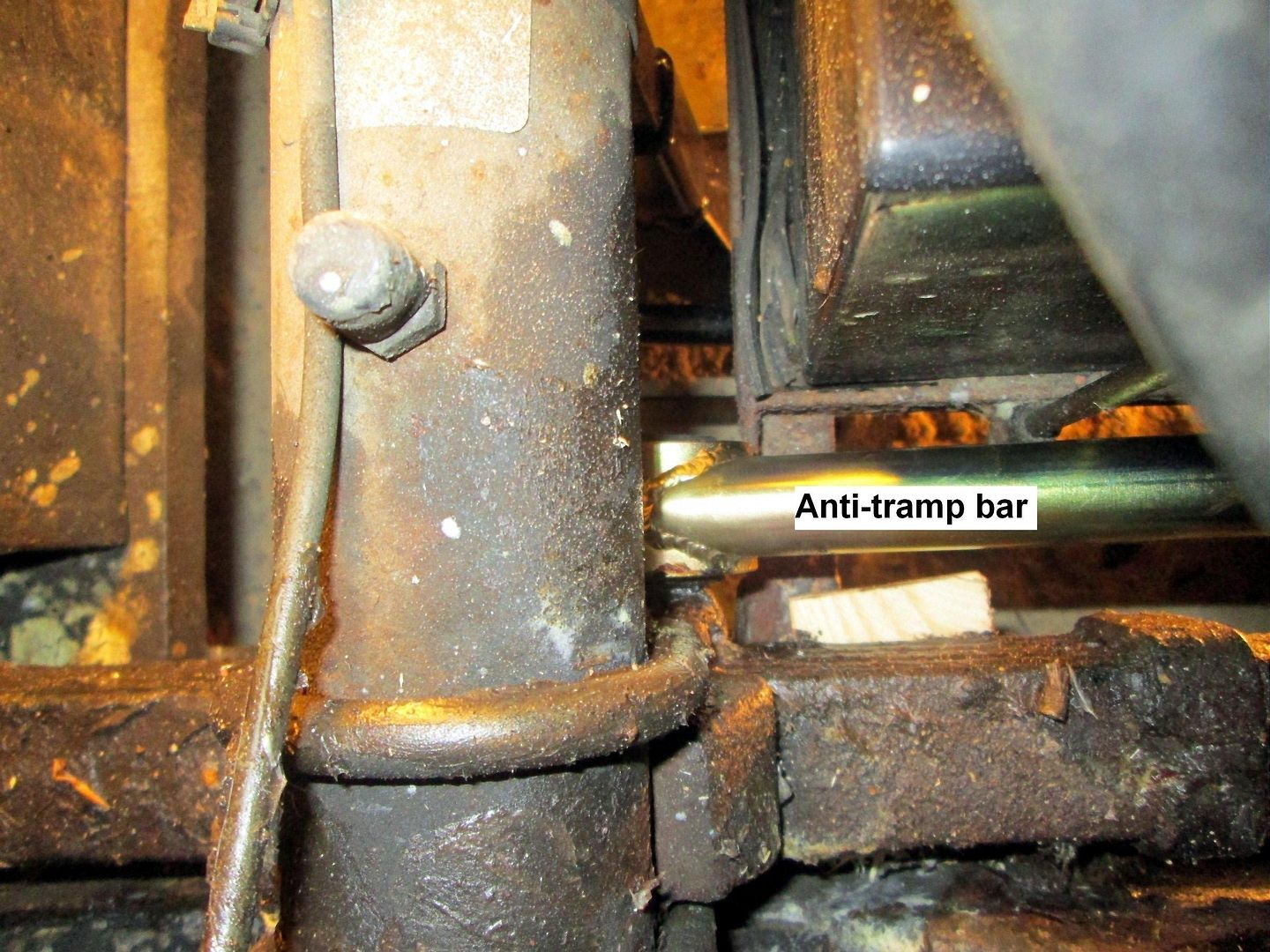

The battery box is welded to the heel board and has a transverse bar bolted to the offside chassis. This has to be cut out to give the anti-tramp bar clearance and a bracket fabricated to support the battery box (See above)

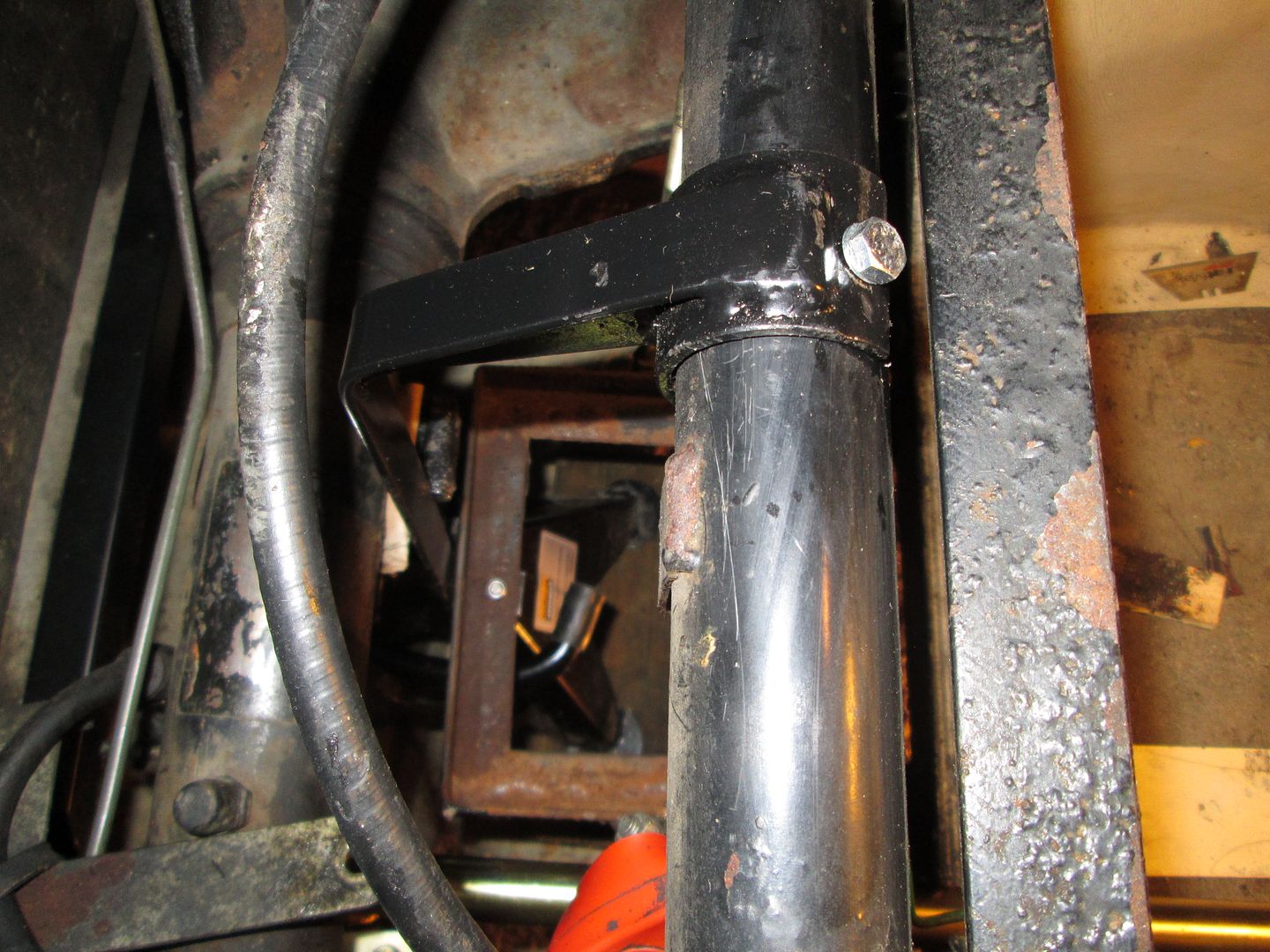

New battery box bracket.

A word of caution on removing the leaf-spring front fixing bolts - after jacking up the car and placing the G-Clamps on the leaf springs, be extra careful when removing the bolt, the latent energy in the clamped spring is considerable. Enough to sheer the G-Clamp with the possibility of broken bones.

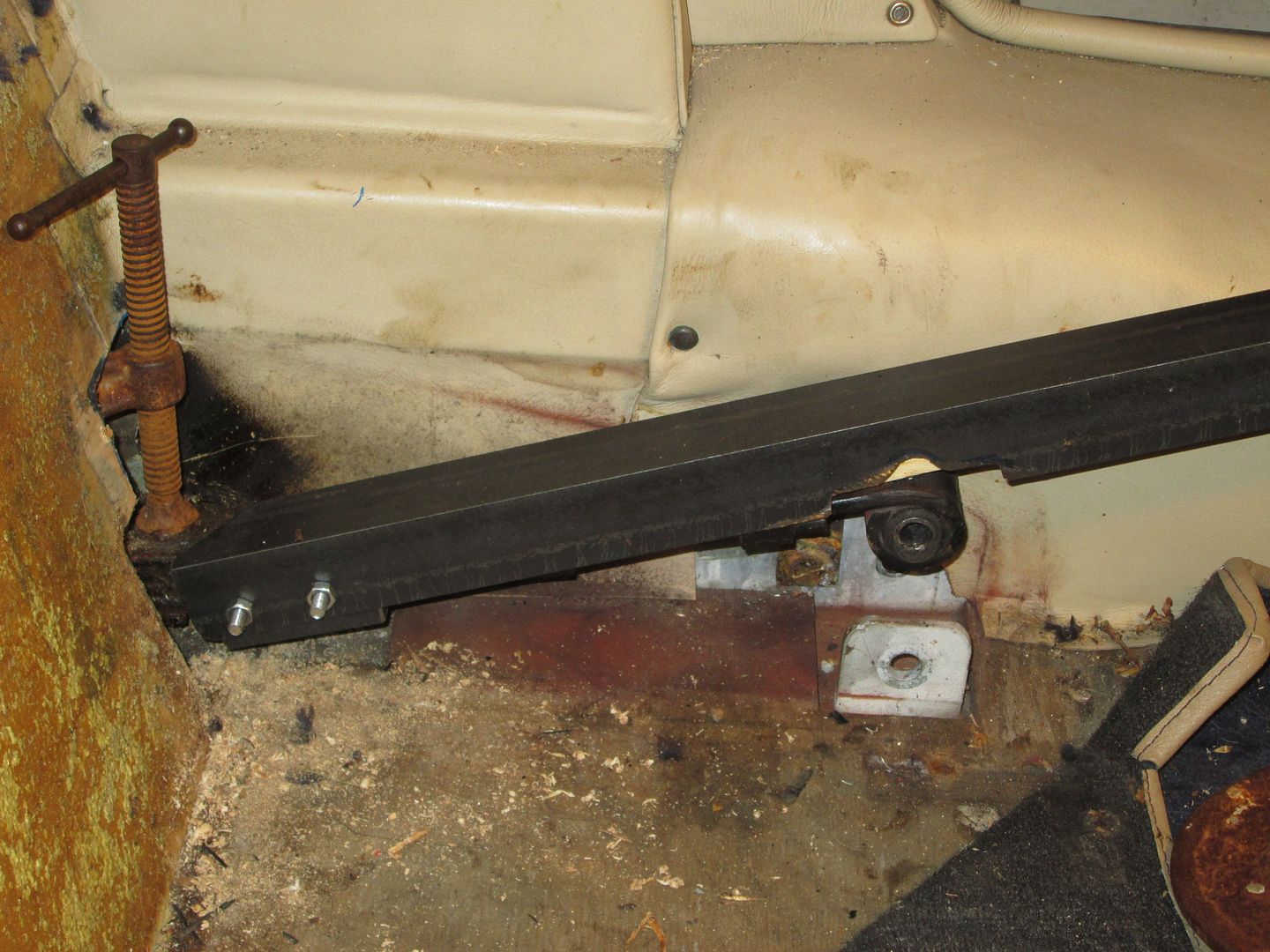

Re-installing the leaf-spring (6 springs on a 4 seater) fixing bolt with the anti-tramp front shackle and spacer needed some extra leverage (downward pressure) I fabricated a steel L bar with a bracket at one end to slide under the leaf spring which gave me the leverage and control needed to centre the forward shackle bolts, see below.



The only other deviation to the instructions was to cut out the section of the back foot well ply below the anti-tramp bar.

New larger leaf spring front fixing covers will have to be fabricated to cover this area.

The AVO's are straight forward: See DaveW post.

Photo's of fixing covers to be added to this post on fabrication.

David, 2001 4/4 4 seater, Avus Blue.

Re: Fitting Anti-tramp, panhard & AVO'S to a 4 seater [Re: Georgie] #182069
14/02/14 11:48 PM
14/02/14 11:48 PM
Joined: Jan 2012
Posts: 14,976
Perth, WA, Australia
Richard - Aus Offline
Member of the Inner Circle
Richard - Aus  Offline
Member of the Inner Circle

Joined: Jan 2012
Posts: 14,976
Perth, WA, Australia
Interesting stuff.


Richard
1976 4/4 4 Seater
Re: Fitting Anti-tramp, panhard & AVO'S to a 4 seater [Re: Georgie] #182122
15/02/14 10:47 AM
15/02/14 10:47 AM
Joined: Mar 2010
Posts: 190
Norway
G
Geir Karlsen Offline
L - Learner Plates On
Geir Karlsen  Offline
L - Learner Plates On
G

Joined: Mar 2010
Posts: 190
Norway
I also find this interesting.
Will you also post picture of the panhard rod installation?
Have you test driven it yet?


4/4 2 seater 2001 model
Re: Fitting Anti-tramp, panhard & AVO'S to a 4 seater [Re: Georgie] #182125
15/02/14 11:11 AM
15/02/14 11:11 AM
Joined: Mar 2013
Posts: 326
Cotswolds
P
PJB Offline
Learner Plates Off!
PJB  Offline
Learner Plates Off!
P

Joined: Mar 2013
Posts: 326
Cotswolds
http://www.mulfab.co.uk/our-products/14/steering-suspension/panhard-rods shows photos and http://www.mulfab.co.uk/fitting-instructions instructions.
or make your own for a fraction of the cost IF you have the skills of course. Cheers PJB.


4/4 2 litre Zetec & SUPLEX RS & SUPLEX 5L
Re: Fitting Anti-tramp, panhard & AVO'S to a 4 seater [Re: Georgie] #182126
15/02/14 11:15 AM
15/02/14 11:15 AM
Joined: Aug 2013
Posts: 2,467
Leicester
Spanner Juggler Offline
Talk Morgan Expert
Spanner Juggler  Offline
Talk Morgan Expert

Joined: Aug 2013
Posts: 2,467
Leicester
How do I add photos?




BR Colin
Who used to be a Spanner Juggler
Re: Fitting Anti-tramp, panhard & AVO'S to a 4 seater [Re: Georgie] #182144
15/02/14 01:26 PM
15/02/14 01:26 PM
Joined: Jul 2007
Posts: 22,425
Cheltenham, Glos. UK
Graham, G4FUJ Offline
Salty Sea Dog
Graham, G4FUJ  Offline
Salty Sea Dog
Member of the Inner Circle

Joined: Jul 2007
Posts: 22,425
Cheltenham, Glos. UK
Place them on a photo hosting web site and add a link from the text in your post.
There are several 'How To's' on this forum... smile


Graham (G4FUJ)

D8921 L44FOR '93 4/4 Giallo Fly 2 seat smile
'90 LR 90 SW
'07 MINI Cooper
Re: Fitting Anti-tramp, panhard & AVO'S to a 4 seater [Re: Georgie] #182146
15/02/14 01:38 PM
15/02/14 01:38 PM
Joined: Mar 2013
Posts: 326
Cotswolds
P
PJB Offline
Learner Plates Off!
PJB  Offline
Learner Plates Off!
P

Joined: Mar 2013
Posts: 326
Cotswolds
OR To add photos, reply with the 'Reply' button, not 'Quick Reply' then click on 'File Manager' to browse your photos on your PC then 'Add' it then they are inserted in your text. OK cheers PJB.


4/4 2 litre Zetec & SUPLEX RS & SUPLEX 5L
Re: Fitting Anti-tramp, panhard & AVO'S to a 4 seater [Re: Georgie] #182160
15/02/14 03:55 PM
15/02/14 03:55 PM
Joined: Oct 2012
Posts: 184
Isle of Wight
Georgie Offline OP
L - Learner Plates On
Georgie  Offline OP
L - Learner Plates On

Joined: Oct 2012
Posts: 184
Isle of Wight
GKA, sorry no photo's of the Panhard fitting.

As PJB said, the Mulfab web page has the installation docs. The Panhard is quite simple to install, as long as you can jack the rear end up safely and high enough (to get the drill in place for the cross bar mounting bolts) I posted the topic because the Mulfab Anti-tramp instructions are for a 2 seater, the differences; the extra force on the 6 leaf springs, the battery mounting, and the extra width needed for the passenger well leaf spring covers.

Took Georgie up to Castle Combe for the weekend, everything seems firm and a little more positive on exceleration, no more thumps when excelerating hard from a stand still. The AVO's are I think a very positive improvement, have not changed the setting from the 4 clicks yet but will experiment.

David. 2001 4/4 4seater Avus Blue
