Found this on German Morganpost. Maybe you ´ re interested! https://fixingc6622.wordpress.com/
2018 +4, persian blue
|
|
|
|
|
Joined: Nov 2018
Posts: 6,676 Likes: 441
Talk Morgan Sage
|
|
Talk Morgan Sage
Joined: Nov 2018
Posts: 6,676 Likes: 441 |
That's TimB - he's a TM member:)
"Y mae dafad ddu ym mhob praidd"
1972 4/4, 1981 MGBGT, 1984 FLHT1340, 1980 XLH1000, 1990 ZX10
|
|
|
|
|
Joined: May 2007
Posts: 4,612 Likes: 15
Part of the Furniture
|
|
Part of the Furniture
Joined: May 2007
Posts: 4,612 Likes: 15 |
Steve A11OGE Red 1989 4/4 4 seater
'A Morgan is for life, not just for Sundays'
|
|
|
|
|
Joined: Apr 2020
Posts: 153 Likes: 1
L - Learner Plates On
|
|
L - Learner Plates On
Joined: Apr 2020
Posts: 153 Likes: 1 |
and today I am completely lost while trying to figure out how the new AutoSparks wiring loom, the wiring diagramm in the owners handbook and the previous wiring should map. BS-AU7 headache galore.  If anybody has a correct wiring plan for the Morgan 4/4 with Ford CVH engine - please let me know.
|
|
|
|
|
Joined: Nov 2018
Posts: 6,676 Likes: 441
Talk Morgan Sage
|
|
Talk Morgan Sage
Joined: Nov 2018
Posts: 6,676 Likes: 441 |
Have you tried GoMog? Electical stuff
"Y mae dafad ddu ym mhob praidd"
1972 4/4, 1981 MGBGT, 1984 FLHT1340, 1980 XLH1000, 1990 ZX10
|
|
|
|
|
Joined: Aug 2010
Posts: 5,468 Likes: 172
Charter Member
|
|
Charter Member
Joined: Aug 2010
Posts: 5,468 Likes: 172 |

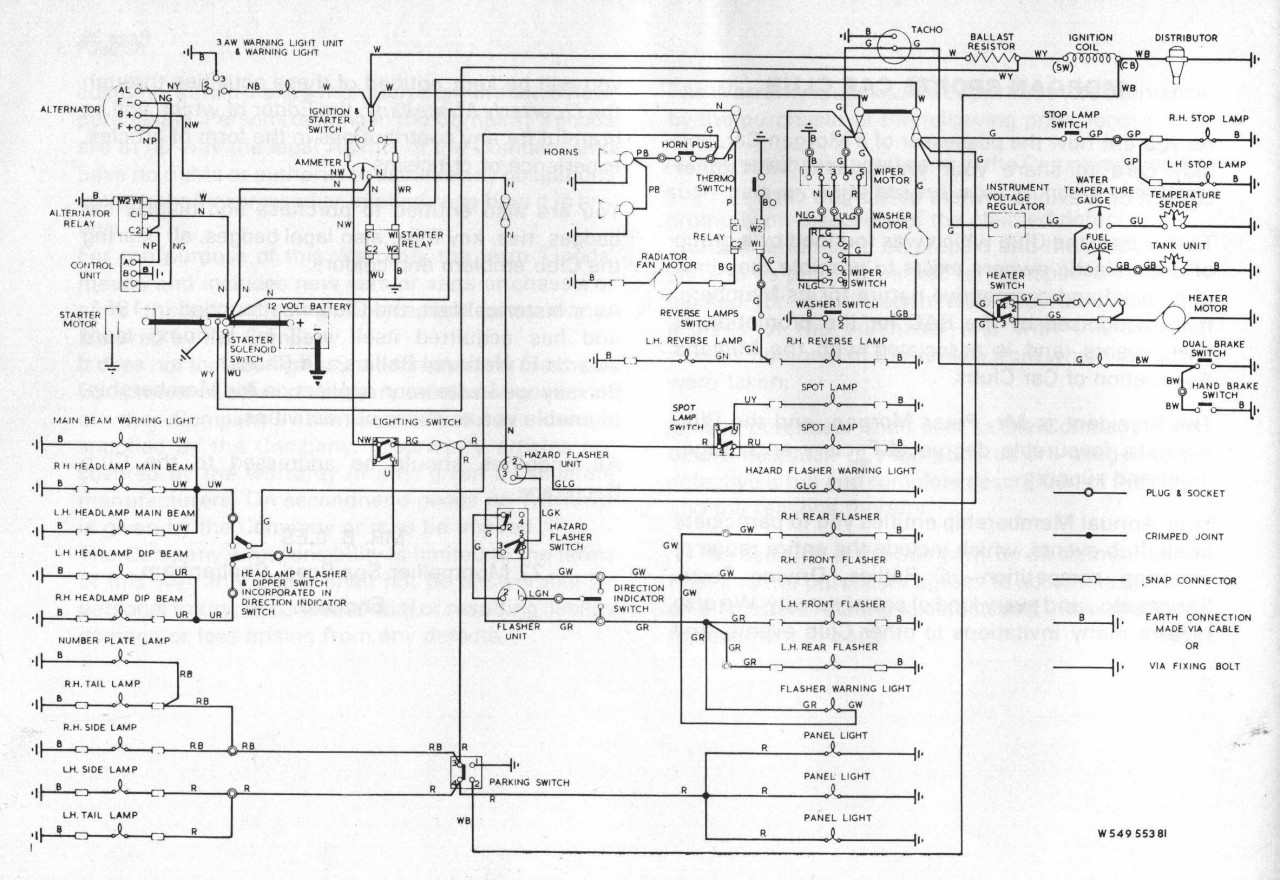

This is the one I referred to when I had a CVH engined 4/4. Sadly, I cannot remember where I got it from. Please double check a few things before you rely on it. ![[Linked Image]](https://tm-img.com/images/2020/12/31/A8196411-3015-4576-9A06-6839C9E26EF5.jpg)
Paul
Costock, UK
Plus Four 75th - Furka Rouge - Pip
Disco 5
Teddy - 17h1 Irish Draught cross
|
|
|
|
|
Joined: Apr 2020
Posts: 153 Likes: 1
L - Learner Plates On
|
|
L - Learner Plates On
Joined: Apr 2020
Posts: 153 Likes: 1 |
Hi TBm, Hi Paul,
The plan on the Gomog page and the plan above (also printed in the drivers handbook) are all the same.
But there are a number of differences between the plan and what is actually in the loom (the one installed from the factory)
E.g. The ballast resistor is missing. There is a white and white-black cable to the ignition coil. This in turn has a black and green-black cable running to the distributior.
Alternator, Starter and Ignition also slightly vary from the plan above.
There is a Red-Yellow cable (Bs-Au7: fog lights) in the loom - not shown in the plan.
The park-switch (also discussed in another conversation here on this forum) is also difficult to find. My Morgan my father installed a MK dashboard with different switches. This makes it even harder to find this in the old loom.
The Autosparks loom (which does not have any documentation and is supposed Identical) has a number of smaller differences. Just takes time to figure it out.
|
|
|
|
|
Joined: Nov 2018
Posts: 6,676 Likes: 441
Talk Morgan Sage
|
|
Talk Morgan Sage
Joined: Nov 2018
Posts: 6,676 Likes: 441 |
Athough on several wiring diagrams, my '72 certainly didn't have a park switch. It may have been a regional variation.
If you have a non ballast coil you won't need the ballast resistor and associated 'bypass' wire for starting.
Might be worth looking at a much later date wiring diagram and doing a comparison?
Last edited by TBM; 01/01/21 10:35 AM.
"Y mae dafad ddu ym mhob praidd"
1972 4/4, 1981 MGBGT, 1984 FLHT1340, 1980 XLH1000, 1990 ZX10
|
|
|
|
|
Joined: Apr 2020
Posts: 153 Likes: 1
L - Learner Plates On
|
|
L - Learner Plates On
Joined: Apr 2020
Posts: 153 Likes: 1 |
That was a very good suggestion. Didn't think about it yesterday. The next plan on GoMog is the 1988-1989 plan for all Morgan cars. This looks much closer to the one installed on my car. https://www.gomog.com/allmorgan/wiring88&89.jpgBack to work bench... 😀👍
|
|
|
|
|
