Originally Posted By Mark H
Absolutely correct, even Hesketh have had to put a vent into the cam belt area to provide some more cooling.


That's was my question too ( see previous post ) which I asked Justin Time.
Did you had the spacers between the belt cover to get some ventilation ?????


M3W brings back the FUN in driving

www.m3w-jungfrau-treffen.com
Joined: May 2016
Posts: 71
Just Getting Started
OP Offline
Just Getting Started
Joined: May 2016
Posts: 71
Originally Posted By Laurens
Originally Posted By Mark H
Absolutely correct, even Hesketh have had to put a vent into the cam belt area to provide some more cooling.


That's was my question too ( see previous post ) which I asked Justin Time.
Did you had the spacers between the belt cover to get some ventilation ?????

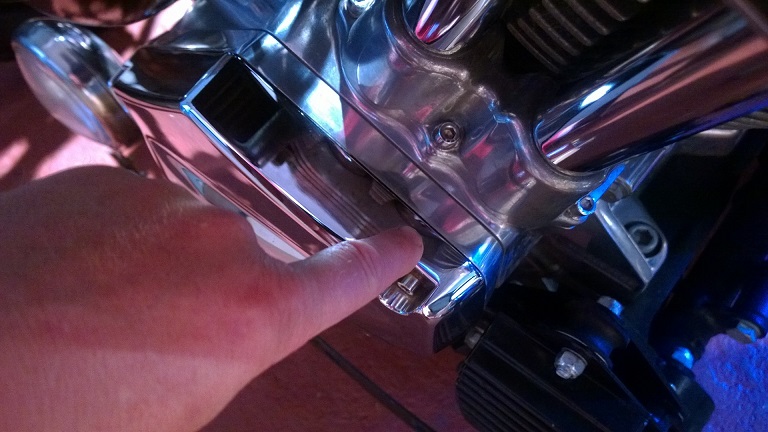

Sorry for my late response, I have put the spacers in.



I have also spent some time with a 3D scanner, and now have an accurate model of the S&S casing, I hope to get some time this week to come up with a vented solution. I can save the CAD file in most flavours, for anyone else if they require it.

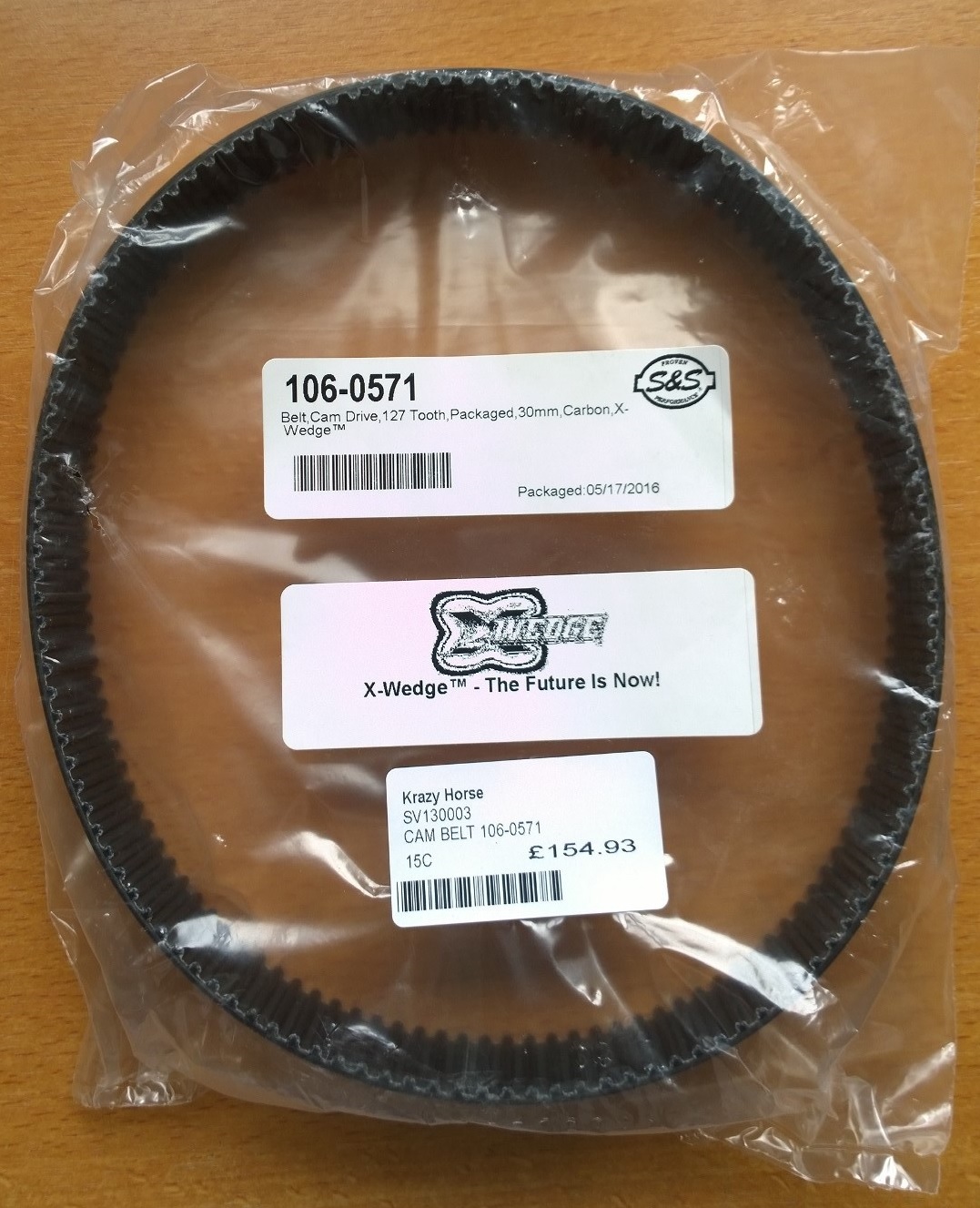

My belt arrived a few moments ago too, S&S manufactured.




Last edited by justin-time; 01/08/16 01:26 PM.
Joined: Feb 2016
Posts: 7,926
Likes: 217
Talk Morgan Guru
Offline
Talk Morgan Guru
Joined: Feb 2016
Posts: 7,926
Likes: 217
I imagine some careful work with a cutting tool on a Dremel would provide the front cooling slots as on latest covers.


Richard

2018 Roadster 3.7
1966 Land Rover S2a 88
2024 Royal Enfield Guerrilla 450
1945 Guzzi Airone
Joined: Apr 2016
Posts: 23
A
New to Talk Morgan
Offline
New to Talk Morgan
A
Joined: Apr 2016
Posts: 23
does anybody have pics of the updated cover?

Joined: Feb 2016
Posts: 7,926
Likes: 217
Talk Morgan Guru
Offline
Talk Morgan Guru
Joined: Feb 2016
Posts: 7,926
Likes: 217
Originally Posted By andream88
does anybody have pics of the updated cover?


Here maybe.


Richard

2018 Roadster 3.7
1966 Land Rover S2a 88
2024 Royal Enfield Guerrilla 450
1945 Guzzi Airone
Joined: Aug 2013
Posts: 1,562
Talk Morgan Enthusiast
Offline
Talk Morgan Enthusiast
Joined: Aug 2013
Posts: 1,562
Looks like latest to me , plus has a large slot in bottom face !

Joined: Nov 2013
Posts: 582
H
Talk Morgan Regular
Offline
Talk Morgan Regular
H
Joined: Nov 2013
Posts: 582
Justin guess I'm missing something. I see a neat profile of the cover (gasket?). How will this let air circulate the belt chamber? Many of the guys simply stack washers a 1/2 to 3/8" stack, much more and the bolts don't reach. I did the washers and fashioned a scoop in the bottom of the cover. Anybody out there that has used spacers had timing belt failure?

Joined: Jun 2012
Posts: 2,141
Likes: 43
Talk Morgan Expert
Offline
Talk Morgan Expert
Joined: Jun 2012
Posts: 2,141
Likes: 43

The spacer washers that S&S fit are about 2.5mm thick. I cannot see how your neat CAD profile will improve the ventilation over the washers. To achieve the current S&S style ventilation solution, Dremel or abrafile the slots in the front casing (as in Richards photo link) plus the cut out in the lower part of the cover. As you are doing all this it would be a good idea to do the modified crankshaft drive gear, bolt and idlers at the same time. That's an expensive cam belt, I hope it lasts a full 30,000 miles!


Joined: May 2016
Posts: 71
Just Getting Started
OP Offline
Just Getting Started
Joined: May 2016
Posts: 71

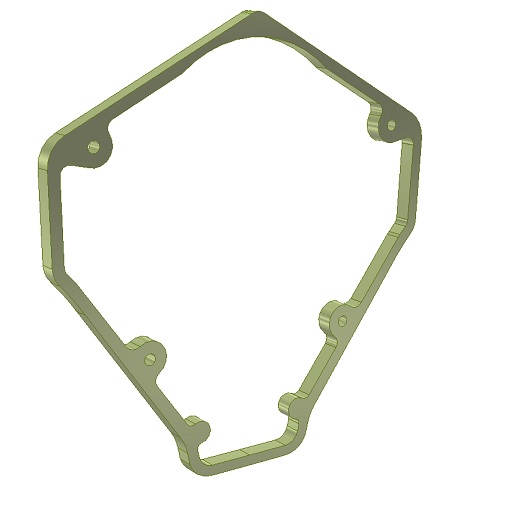

Sorry chaps, its not a product, its simply the profile of the cover gasket area, that you could use in your own CAD package, to design a vented product.

I did yesterday manage to change my timing belt, it was a tough to get on the sprockets, even with the idlers removed. Sore thumbs today.

However, I did think of this a moment ago.

Stainless steel metal powder sintered microporous filter material

Last edited by justin-time; 02/08/16 10:20 AM.
Joined: Feb 2016
Posts: 7,926
Likes: 217
Talk Morgan Guru
Offline
Talk Morgan Guru
Joined: Feb 2016
Posts: 7,926
Likes: 217
I honestly don't think just porous material for the gasket will achieve anything like the cooling airflow needed. The current cover provides air forced into cover and exiting in space created by proud mounting points in lieu of washers used previously, plus aperture at bottom of cover which serves as drain as well.

Moto Guzzi provided solution to similarly located alternator rotor. A plastic cover had extended vent/drain at the bottom. This created low pressure area behind, in turn creating airflow inside cover via a spacer between cover and crankcase with a lip in the profile that didn't allow direct water ingress.

Maybe you could create something similar with your CAD profile but would still need to add the cooling slots to an earlier type cover.


Richard

2018 Roadster 3.7
1966 Land Rover S2a 88
2024 Royal Enfield Guerrilla 450
1945 Guzzi Airone
