New to Talk Morgan
|
bespoke 2012 plus4 dash

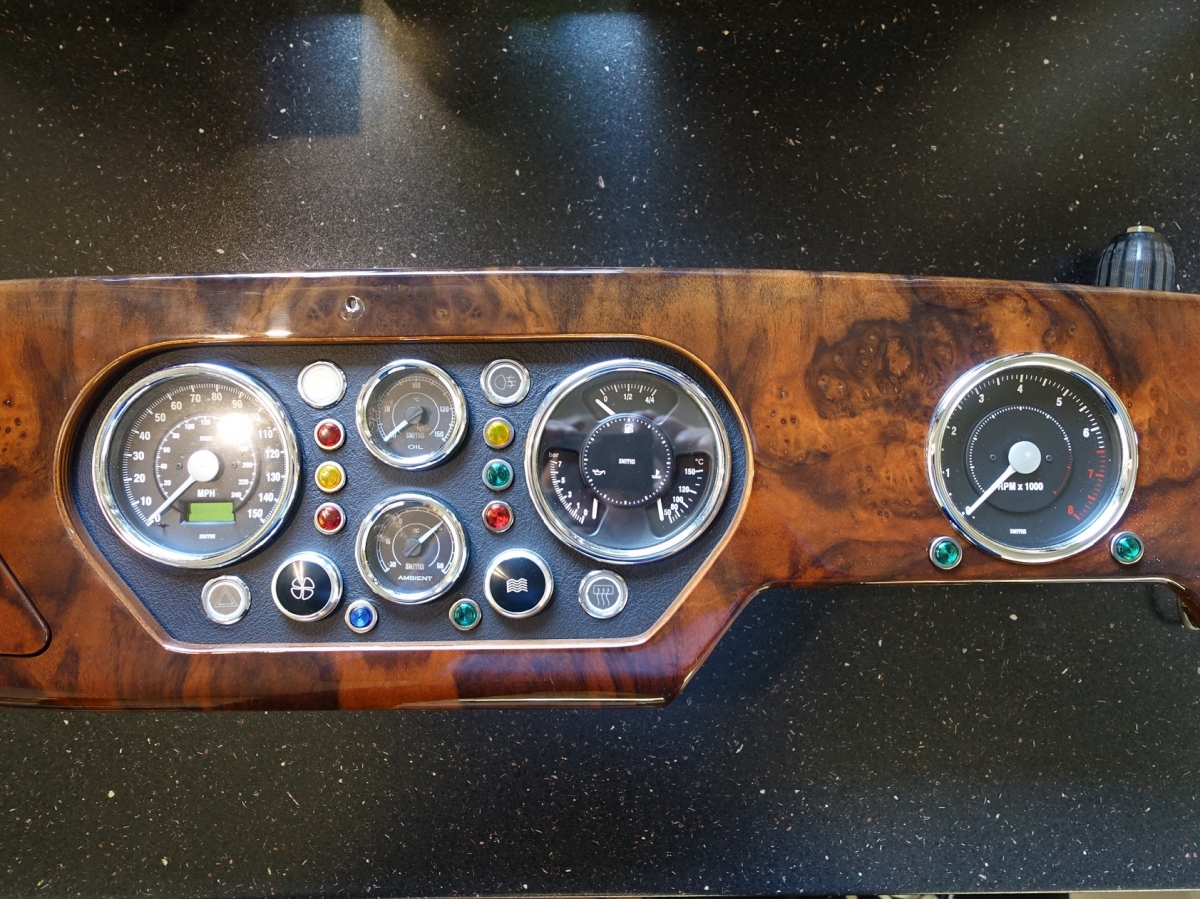

EventuallyI got my bum into gear and ventured to share photos of my homemade dashboard. If the uploading works I will add descriptions. The weather here is most depressing and the roads are full of hostile salt. The Morgan will have to stay in  So much for now, Michael
|
|
|
|
|
Joined: Jul 2007
Posts: 27,853 Likes: 767
Member of the Inner Circle
|
|
Member of the Inner Circle
Joined: Jul 2007
Posts: 27,853 Likes: 767 |
JohnV6
2022 CX Plus Four
2025 Renault Scenic Alpine etech "Yvette"
|
|
|
|
|
Joined: Oct 2012
Posts: 6,538
Talk Morgan Sage
|
|
Talk Morgan Sage
Joined: Oct 2012
Posts: 6,538 |
Looks v smart indeed. Nice piece of wood - makes all the difference.
Well done!
Neil
|
|
|
|
|
Joined: Jul 2016
Posts: 537 Likes: 28
Talk Morgan Regular
|
|
Talk Morgan Regular
Joined: Jul 2016
Posts: 537 Likes: 28 |
Looks v smart indeed. Nice piece of wood - makes all the difference.
Well done! +1 Would like to change mine too. Looking forward to your descriptions.
Dirk
1993 Morgan +4 (Connaught Green)
2009 Mini Cooper D
2024 Mercedes GLC
1994 Ford Motorhome
|
|
|
|
|
Joined: Oct 2016
Posts: 513 Likes: 2
Talk Morgan Regular
|
|
Talk Morgan Regular
Joined: Oct 2016
Posts: 513 Likes: 2 |
Ooh interesting. What was the driver behind doing this? Was it an issue with the existing setup? Are you using the existing relays.?
Looks very good....
Nick
|
|
|
|
|
Joined: Mar 2017
Posts: 12
New to Talk Morgan
|
|
OP
New to Talk Morgan
Joined: Mar 2017
Posts: 12 |
Thanks!
Hopefully the photos posted seperately explain some issues.
I've read everything about dashboards in this forum over the last 6 months – thank you very much!
The first thing was to make up my mind about which instruments, lights and switches I wanted to install.
Instruments I ordered from Caerbont – the Flight series is similar to the existing Speedo and Tachymeter, practically anything could be made to order, however.
The wires I ordered from Amazon, the warning lights from europaspares.com and the LED bulbs from a lokal electronics supplier or Amazon. It was great fun receiving new parcels every day.
Then I had to decide which surface it should be: I chose a black leather in contrast to the existing walnut dash after having tried a few versions of stained and varnished veneers.
I then bought a 5mm beech plywood, which is very simple to jigsaw and tough enough to withstand all acting forces. It is cheap and I can change the layout any time just by jigsawing another board.
The challenging bit was to test the correct wiring of the warning light PCB, to solder the switches off the main PCB and to solder them on again with flying wires.
It is all very straight forward and analog – just give it a go. I practised soldering on an old computer PCB previous to working on the real thing.
Michael
|
|
|
|
|
