Some good tips from you guys and I thank you all very much. The way my week is going it’s bound to be a pcb problem!
|
|
|
|
|
Joined: Feb 2011
Posts: 14,009
Member of the Inner Circle
|
|
Member of the Inner Circle
Joined: Feb 2011
Posts: 14,009 |
There is a common problem with the PCB that handles the dash electronics.
Seems that if you get water ingress then this can cause shorts on the PCB tracks that leaves the fog light permanently on.
The switches and relays are of good quality, but the PCB is not.
The PCB is manufactured by Zonefollow who I believe are no longer in business and when I tried to get a circuit diagram from Morgan they said they did not have one.
A replacement PCB is in the region of £600 but Morgan do not appear to have any stock.
If you do sort out the problem would be interested to know what the fault was. The 4/4 of the original poster is still a current model....well it was until a couple of weeks ago. The PCB for that model is obviously still being manufactured. One for 3.0 Riadsters is another matter which is why my car has it covered in a plastic sheet 🙄. I’ve had too many underdash leaks....now hopefully sorted.....and washer hoses pop off.
Jays
Former Morgan owner. Gone but hopefully not forgotten!
|
|
|
|
|
Joined: May 2015
Posts: 99
Just Getting Started
|
|
OP
Just Getting Started
Joined: May 2015
Posts: 99 |
Anyone know the best way to gain enough access to the pcb to inspect/ remove it?
|
|
|
|
|
Joined: Apr 2014
Posts: 3,547 Likes: 4
Talk Morgan Addict
|
|
Talk Morgan Addict
Joined: Apr 2014
Posts: 3,547 Likes: 4 |
Take the dash off unplug all the cables, remove plastic splash guard/cover unscrew switch backs on pcb to release pcb from switches, don't forget to remove ribbon that goes to lamp panel. Pcb is double sided.
Mark - No Longer driving Archie the Old English Sheep Mog........... 2010 Roadster 3.0 V6 (S3)
|
|
|
|
|
Joined: Jul 2015
Posts: 537 Likes: 3
Talk Morgan Regular
|
|
Talk Morgan Regular
Joined: Jul 2015
Posts: 537 Likes: 3 |
With all the wisdom and experience exchanged in this dialogue I am now curious to know why, in respect of the original posting, a main dealer couldn't help? After all, it seems to be a relatively common problem. Don't want to start a drift onto a different topic though.
Rob T
2017 Tungsten Plus 4
|
|
|
|
|
Joined: May 2012
Posts: 1,639 Likes: 20
Talk Morgan Enthusiast
|
|
Talk Morgan Enthusiast
Joined: May 2012
Posts: 1,639 Likes: 20 |

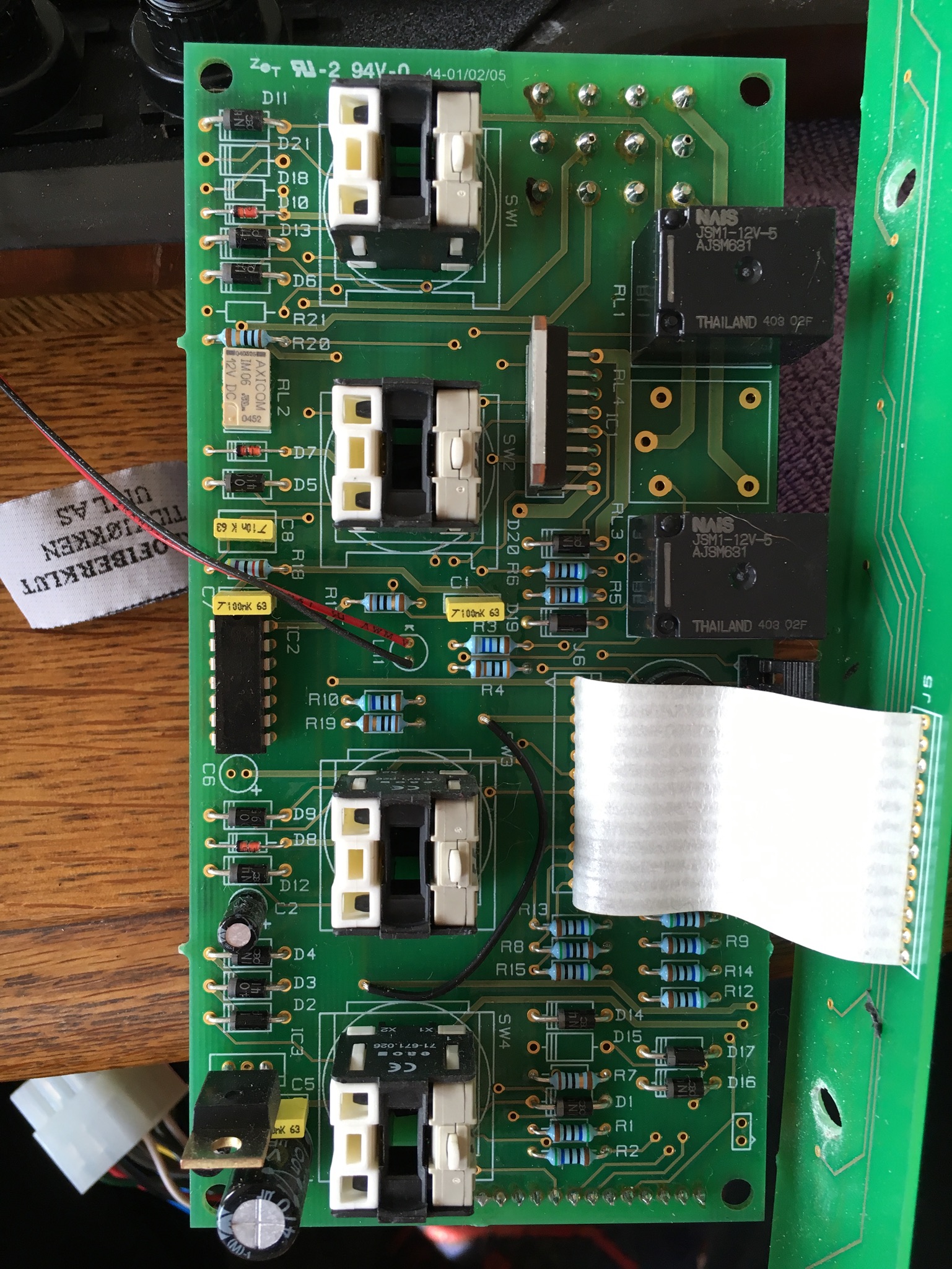

Unfortunately the older model but as I had a pic thought it might be of interest to somebody. As said I got away without repairing mine but I suspect the offending relay might be the Axicom IM 06 next to the switch. PS –I believe that chip ‘enhancement’ is original
Roger
2011 Plus 4
|
|
|
|
|
Joined: Feb 2010
Posts: 538 Likes: 2
Talk Morgan Regular
|
|
Talk Morgan Regular
Joined: Feb 2010
Posts: 538 Likes: 2 |
There is a common problem with the PCB that handles the dash electronics.
Seems that if you get water ingress then this can cause shorts on the PCB tracks that leaves the fog light permanently on.
The switches and relays are of good quality, but the PCB is not.
The PCB is manufactured by Zonefollow who I believe are no longer in business and when I tried to get a circuit diagram from Morgan they said they did not have one.
A replacement PCB is in the region of £600 but Morgan do not appear to have any stock.
If you do sort out the problem would be interested to know what the fault was. The 4/4 of the original poster is still a current model....well it was until a couple of weeks ago. The PCB for that model is obviously still being manufactured. . Good, because that's exactly the problem I have, since we were caught in a down pour on the the way to TOTH a few weeks ago!!
Paul
|
|
|
|
|
Joined: Apr 2014
Posts: 3,547 Likes: 4
Talk Morgan Addict
|
|
Talk Morgan Addict
Joined: Apr 2014
Posts: 3,547 Likes: 4 |
If your dash is the same as my Roadster I have pictures of both sides if you need them, but if it's a failed diode you may not even see the failure.
Mark - No Longer driving Archie the Old English Sheep Mog........... 2010 Roadster 3.0 V6 (S3)
|
|
|
|
|
Joined: Nov 2015
Posts: 490
Learner Plates Off!
|
|
Learner Plates Off!
Joined: Nov 2015
Posts: 490 |
Hi Johnbbank,
PM sent
Peter.
"Hasta la victoria siempre"
|
|
|
|
|
Joined: May 2010
Posts: 9,285 Likes: 69
Needs to Get Out More!
|
|
Needs to Get Out More!
Joined: May 2010
Posts: 9,285 Likes: 69 |
About 2 years ago my 2002 Plus8 had a similar issue. The rear fogs were intermittent often sending flashing signals to the car behind!
I worked through the circuit checking bulb,holder,fuses,wires, switch etc.
I narrowed it down to the control module behind the dash. A small black box.
I prised it open and the pub was loose, rattling round. I re glued it and the problem seemed cured. Not for long!
It came back. I tried Uncle Melvyn (February). Not in stock and factory order. GRRR.
MOT was due in November. Over the summer no progress in getting a replacement. Factory stock was for pre 1997 models and apparently not interchangeable. No news of any being ordered in.
So....choices were
Source one from Carbuildersolutions and sort out the wiring.
Replace with manual (might have been a MOT issue re cancelling)
Check the module.
I checked the module under a magnifier and saw two solder joints that looked iffy. I resoldered them and yippee! Problem solved and not returned.
Oh the joys of Morgan ownership!
Mind you solving it is a good feeling.
Plus Four MY23 Furka Rouge
|
|
|
|
|
